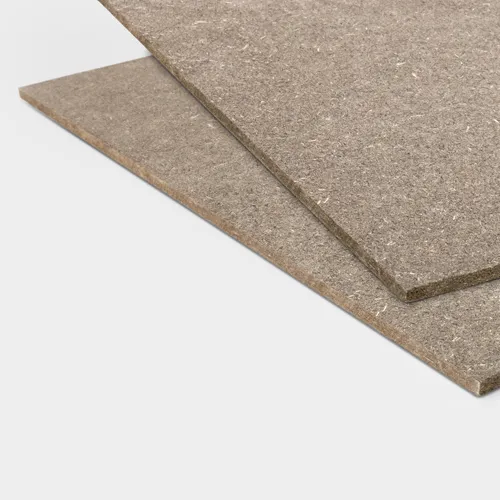

Manufactured from raw timber through chipping, fiber separation, drying, gluing, and hot-pressing, LANSEN Carbon Element Board is a highly cost-effective, multi-purpose substrate. It offers maximum dimensions of 2470×1220 mm or 3060×1220 mm, with thicknesses ranging from 5 mm (for furniture) to 8/12 mm (for wall panels and flooring). Featuring a density of ≥830 kg/m³ and a 24-hour water absorption swelling rate of ≤8% (far exceeding the national standard of ≤18%), it boasts prominent moisture and mold resistance, with superior stability compared to standard MDF.
Meeting the ≤E1 formaldehyde emission standard, it is compatible with all LANSEN finishing layers. It supports seamless tongue-and-groove jointing along the long edge, CNC machining, commercial furniture fabrication, and curved shaping. Offering quick and easy installation, it is perfectly suited for budget-conscious commercial spaces like tea shops and retail stores, delivering core advantages in moisture resistance, stability, and easy processability.
| Dimension | Size/Property/Function/Highlight | Remarks |
| Maximum Sheet Size | 2470mm*1220mm / 3060mm*1220mm | Customizable within these specifications |
| Finished Thickness | 5mm (furniture board) / 8mm (wall panel) / 12mm (wall panel, floor) | / |
| Panel Density | ≥830 kg/m³ | / |
| Formaldehyde Emission | ≤ E1 grade | / |
| 24H Water Absorption Swelling Rate | ≤8% (national standard ≤18%) | / |
| Panel Composition | Made from raw wood, processed by chipping, fiber separation, drying, then adding resin or other suitable adhesives, followed by hot pressing. | / |

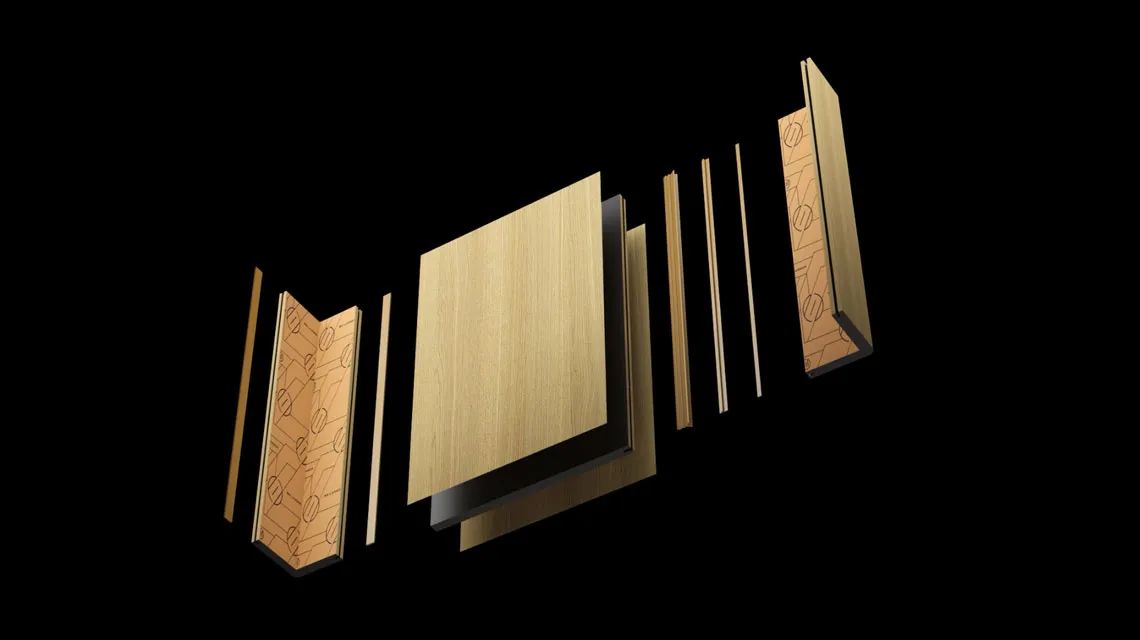

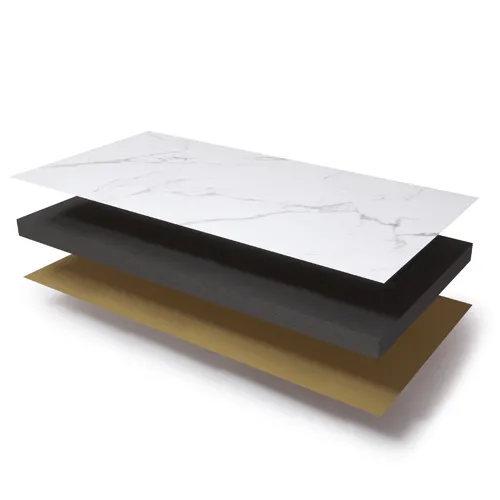

| Panel Structure | 1. Wear-resistant layer (floor) 2. Impregnated decorative paper layer 3. Black high-density fiberboard (HDF) substrate 4. Moisture-proof back balancing layer | / |
| Panel Edge Processing | Wall panel: long-side grooving & chamfering, long-side groove for seamless joining Floor: four-side grooving & chamfering | / |
| Panel Surface Finish | All Lansen surface finishes | / |
| Panel Properties | Relatively high density, moisture and mold resistant, more stable than other density boards | / |
| Decorative Surface Materials | SA / wood veneer / aluminum veneer (direct lamination) PVC / PP / fabric (wrapping) PET (flat lamination) | / |
| Deep Processing Types | Can be used for component processing, CNC machining, and commercial furniture manufacturing. For bending/curving, back grooving is required. | / |
| Product Highlights | Moisture resistant, easy to install, high stability | / |
LANSEN Carbon Board consistently balances practicality and cost-effectiveness: it significantly improves the efficiency of commercial space adaptation, maximizes control over renovation costs, while delivering superior moisture-resistant and stable performance.
Whether it is the high-density black HDF substrate, the E1-grade environmentally friendly process, flexible customized sizes, or the dedicated grooving and chamfering processes for wall panels and flooring, our Carbon Board makes commercial space renovation exceptionally worry-free and durable thanks to its unique properties and core performance.
Dense, stable, moisture-proof and mildew-resistant; outperforms ordinary density boards.
E1-grade environmental protection, no additional coating, suitable for rapid construction.
Customizable sizes, supports CNC machining and bending/curving, adaptable to diverse scenarios.
Compatible with quick-installation systems; grooving technology enables efficient and easy installation.
High value for money, precisely matching various application needs of ordinary commercial spaces.
LANSEN ML-SA Carbon Panel is fully compatible with all color and pattern designs of LANSEN products. It matches various styles perfectly, delivering unified visual effect and reliable performance across the full range of our decorative panels.
